AdaptorMount
Stainless Steel Slipfitter Adaptor Mounting Bracket (ID 2.5") for Round Pole (up to OD 2 3/8")
Stainless Steel Slipfitter Adaptor Mounting Bracket (ID 2.5") for Round Pole (up to OD 2 3/8")
Couldn't load pickup availability

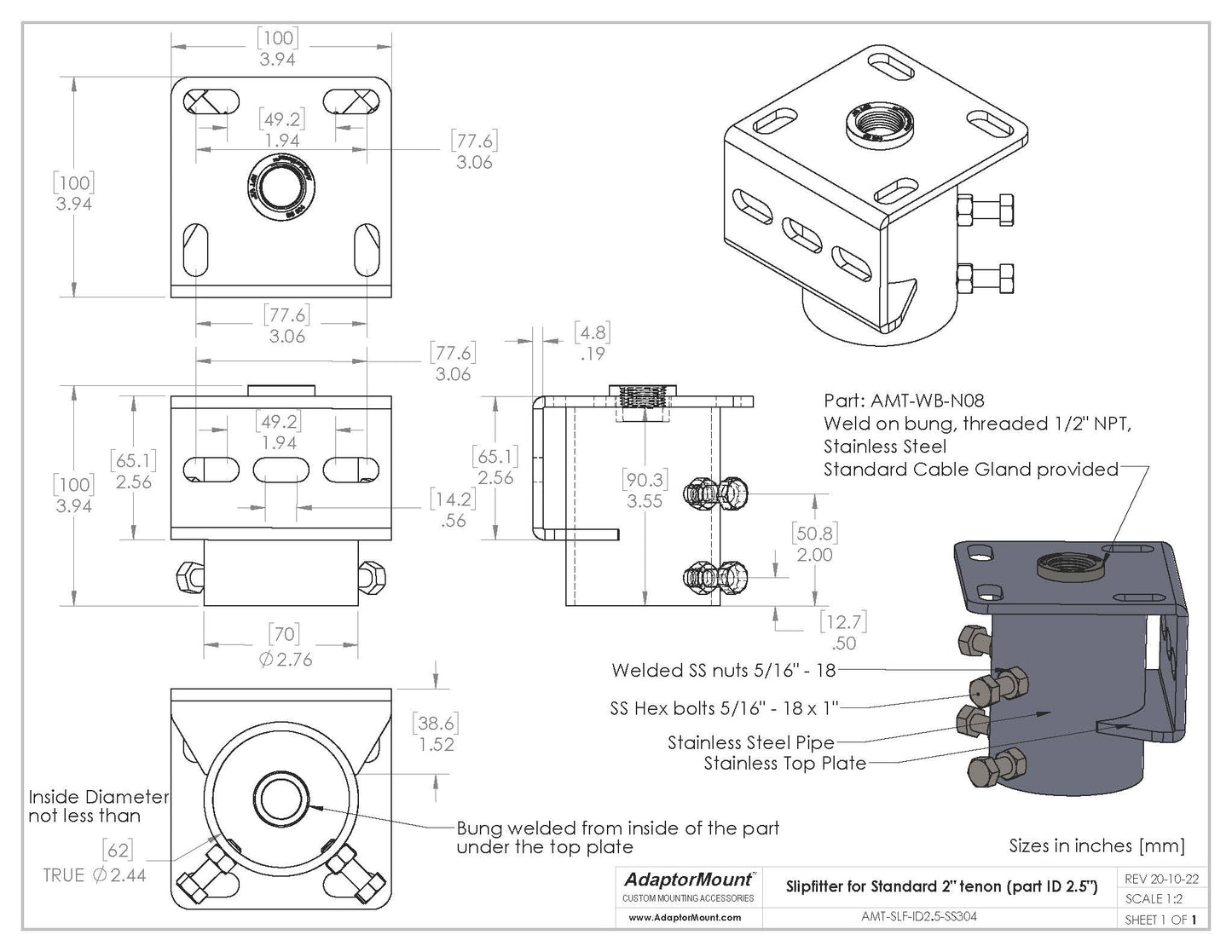

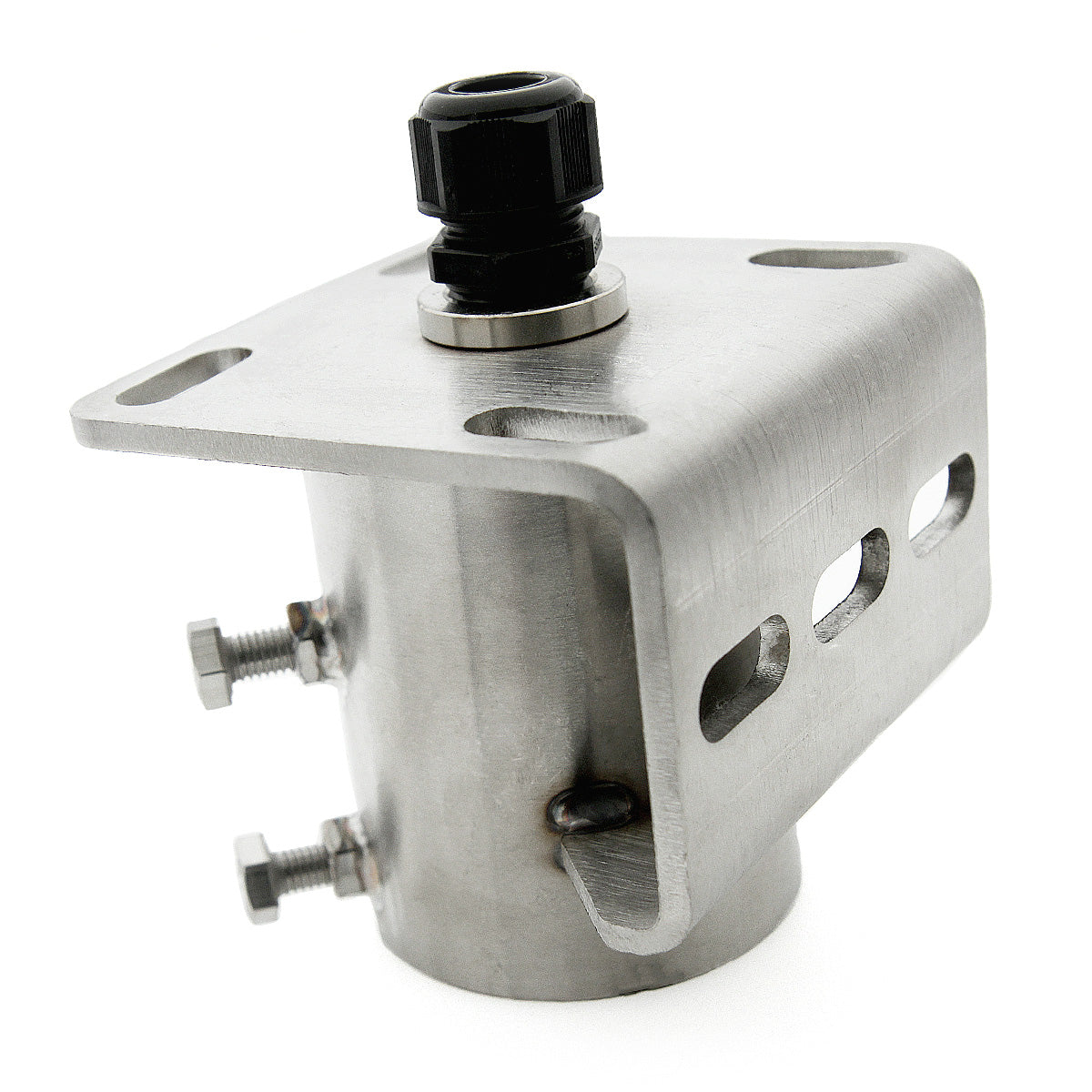

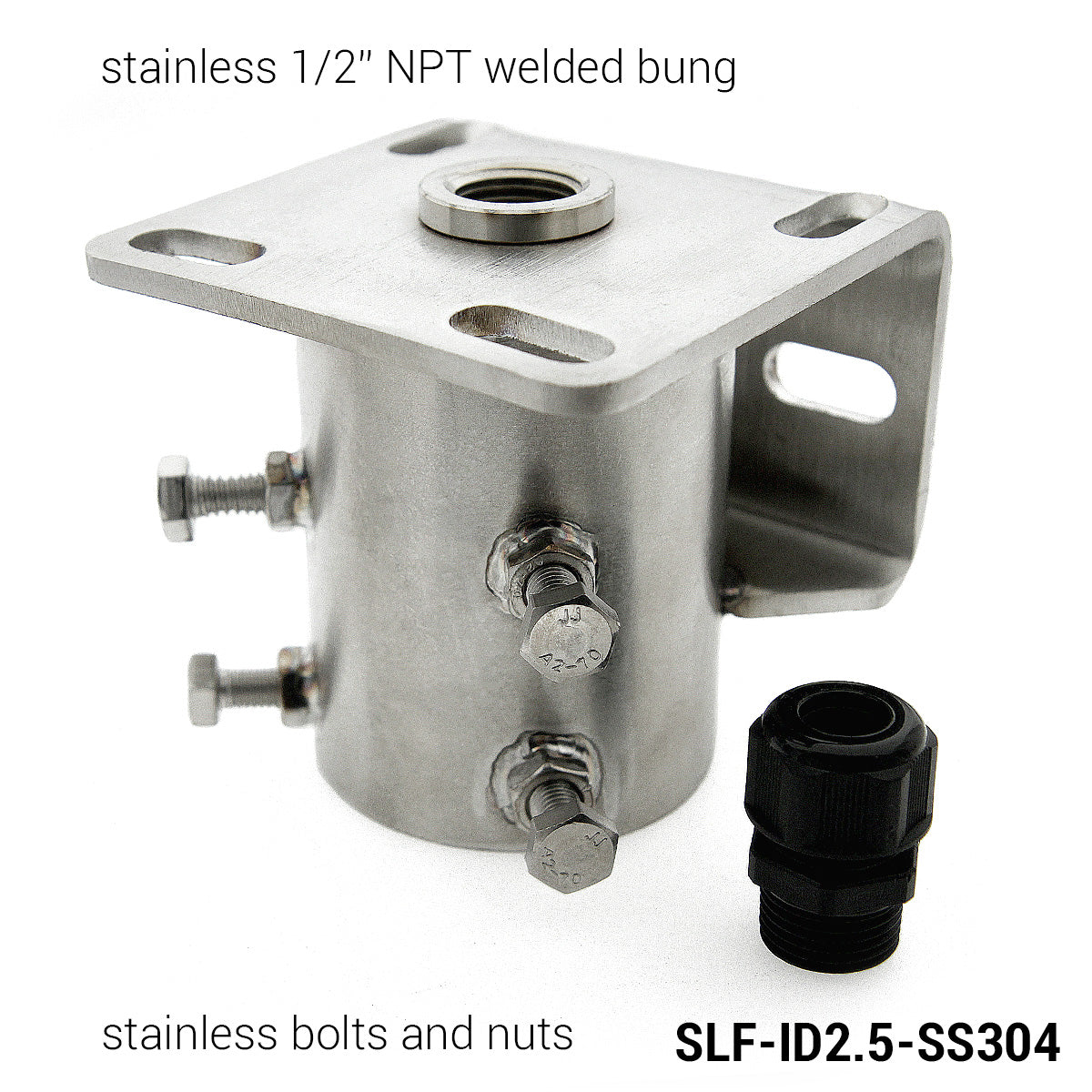

Stainless Steel Industrial grade heavy duty slipfitter mounting bracket adapter. Allows for installation of light fixtures, electrical and other equipment on vertical or horizontal poles or tenons. Top plate is Gauge 7 (3/16" thick) stainless steel 304, mounting slots allow installations with bolt spacing up to 3-1/4". Center weld-on bung is stainless steel and is tapped for 1/2" NPT thread (standard) and standard cable gland is provided with the product. Base sleeve is made of Stainless Steel pipe, 4 stainless steel nuts are welded on the side. 4 stainless steel securing bolts provided. Other material construction and custom options available. Contact plant for details.

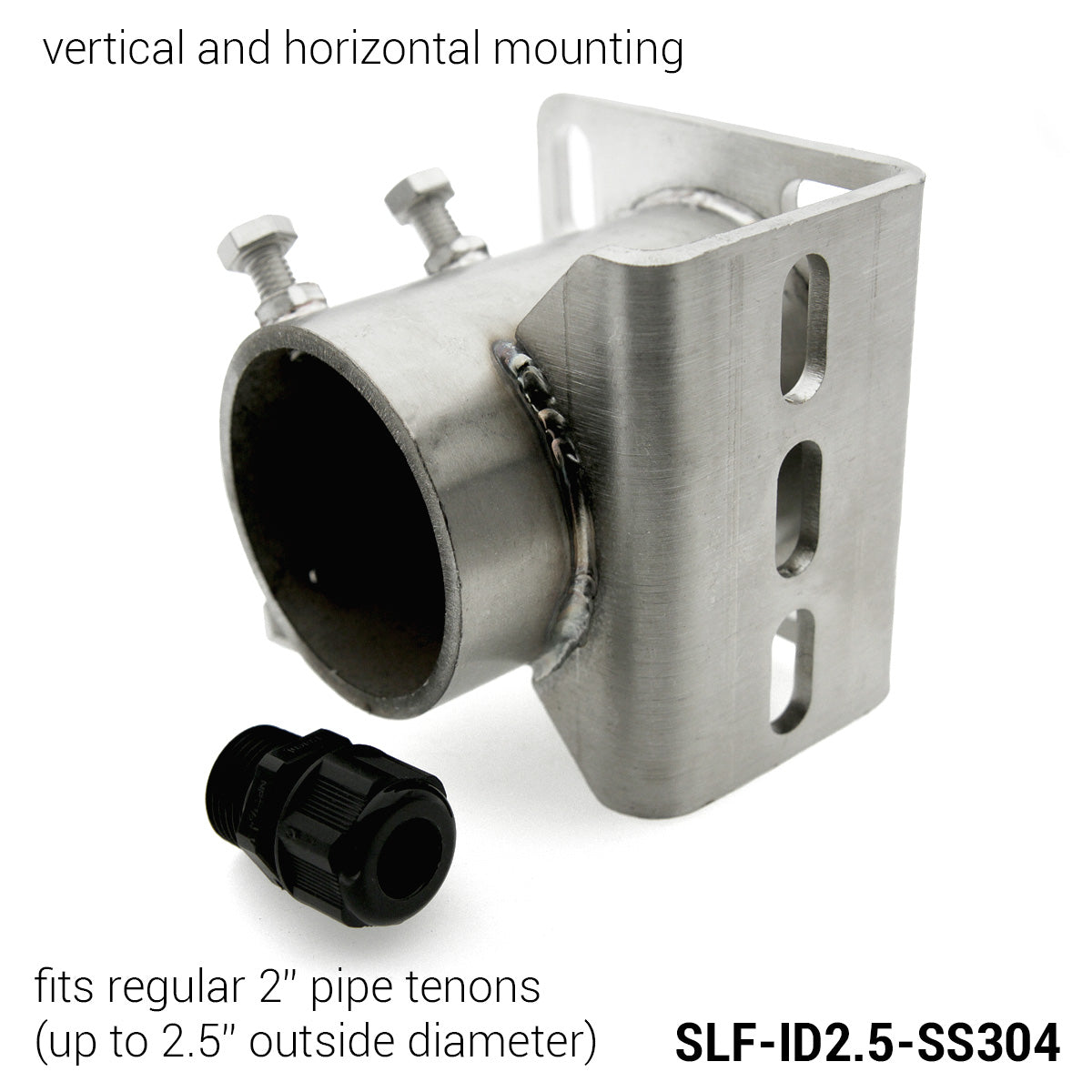

- Heavy-duty Stainless Steel construction, vertical or horizontal orientation
- Sleeve mounting on 2.0" pipe poles (up to OD 2-3/8")
- Universal mounting plate for bolts spaced up to 3-1/4"
- Standard strain relief / cable gland 1/2" NPT is provided
- Stainless steel securing bolts 5/16" - 18 (4 pcs) are standard
