Slipfitter Adapter Mounting Bracket (ID 2.0") for Round Pole (up to OD 1 7/8")
Slipfitter Adapter Mounting Bracket (ID 2.0") for Round Pole (up to OD 1 7/8")
Couldn't load pickup availability

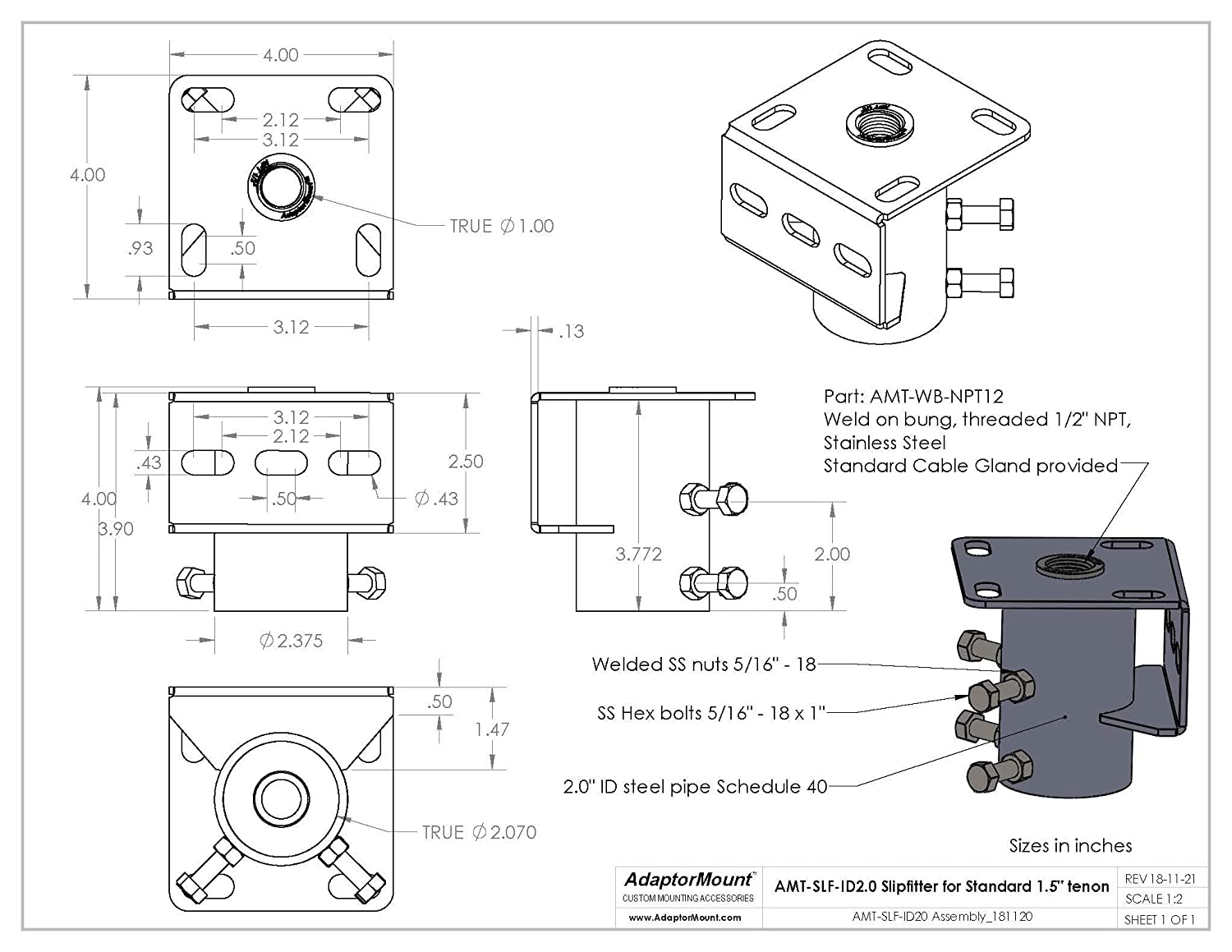

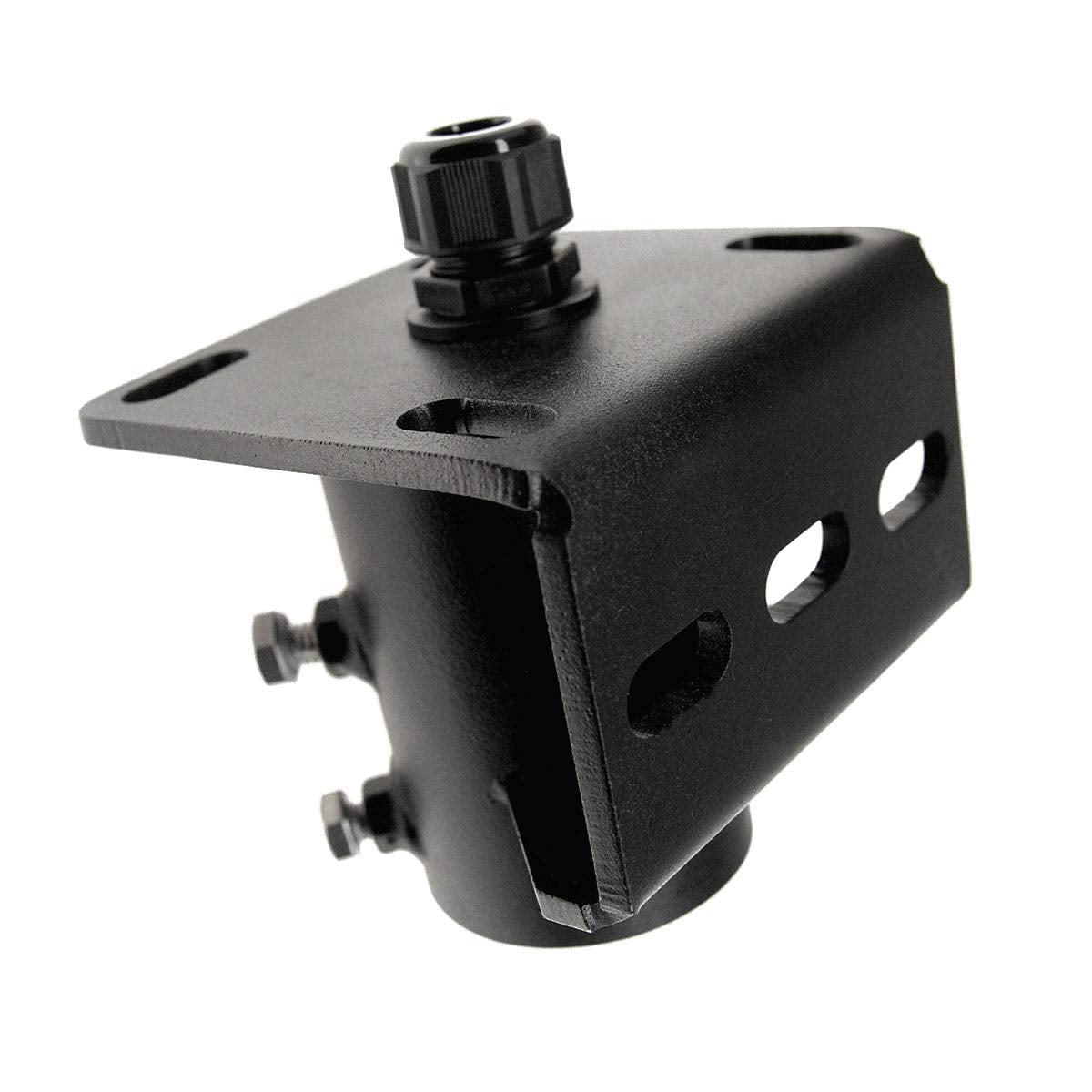

Industrial grade heavy duty slipfitter mounting bracket adapter. Allows for installation of light fixtures, electrical and other equipment on vertical or horizontal poles or tenons. Top plate is Gauge 7 (3/16" thick) carbon steel, mounting slots allow installations with bolt spacing up to 3 1/4". Center weld-on bung is stainless steel and is tapped for 1/2" NPT thread (standard) and standard cable gland is provided with the product. Base sleeve is made of Schedule 40 steel pipe, 4 stainless steel nuts are welded on the side. 4 stainless steel securing bolts provided. Black powder coating is standard. Hot-dip galvanized coating is optional. Contact plant for details.
- Heavy duty steel construction, vertical or horizontal orientation
- Sleeve mounting on 1.5" pipe poles (up to OD 1 7/8")
- Universal mounting plates for bolts up to 3 1/4" apart
- Standard cable gland 1/2" NPT is provided
- Stainless steel securing bolts 5/16" - 18 (4 pcs) are standard
